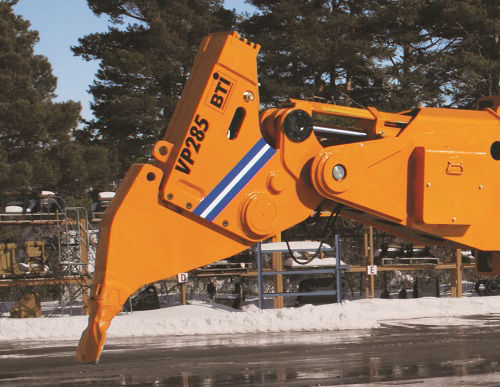

Vibratory Pick

The Vibratory Pick Scaling (VPS) breaker attachment combines the action of a pry-bar, pick and breaker into a simple design for vibratory or mechanical scaling of soft sedimentary rock. Its variable nitrogen charge system allows you to tune impact energy to match your ground conditions, preventing over-scaling. The distinctive, pivoting tooth design allows full transmission of energy to go into the rock without getting jammed, and quickly removes loose materials. Fully enclosed boxed housing and shock absorbing material provide structural integrity and a longer breaker life.

Varian: Pick Scaling Breaker for Excavator, Mobile UG Vehicle, Pedestal System

Key Features:
- Extremely Narrow Design and Raised Orientation of Tooth, provide excellent operator visibility and dexterity during all scaling modes. No more guessing where the tool is, as is the case with conventional scaling breakers.
- Pivoting Tooth Action at All Angles, provides full transmission of breaker impact energy to the tooth without binding.
- Distinct Head Design with pry point, turns the vibratory into a pry-bar which quickly removes loose material.
- Replaceable Engaging Teeth and Breach Access System allows for full transmission of the carrier’s cylinder forces through the pick.
- Large Diameter Pivot Pin and Guide System allows for full transmission of the carrier’s cylinder forces through th pick.
- Fully Enclosed Boxed Housing with floating breaker design and shock absorbing recoil system provides excellent structural integrity, eliminate breaker vibration to carrier and operator. BTI’s breaker within a scaling pick provides versatile scaling in a single lightweight unit.
- Variable Nitrogen Energy Charge and Oil Flow allows tuning of impact energy and frequency to match individual ground conditions, preventing over-scaling or mining of scaling surface.
- Anti-Blank Firing System protects breaker and tappet system, ensuring that the Ground Engaging Tool is in full contact with the scaling surface before the breaker fires.
- Choise of Ground Engaging Tooth Configurations (Pointed Tooth, 5” Spade Tooth, 10” Spade Tooth) provides maximum production rates and excellent finished ground condition.

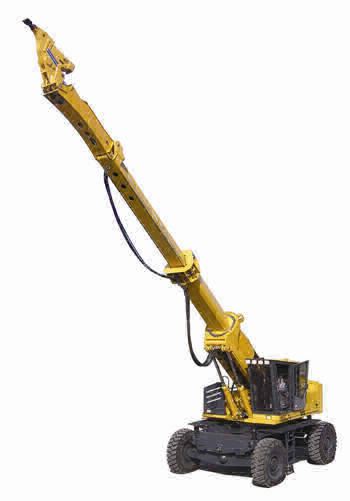

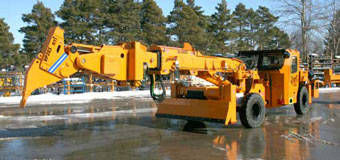

Available as attachment for:
- Excavators

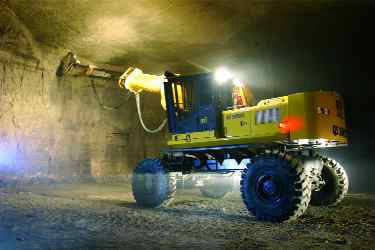

- Mobile Underground Vehicles
- Pedestal Systems
